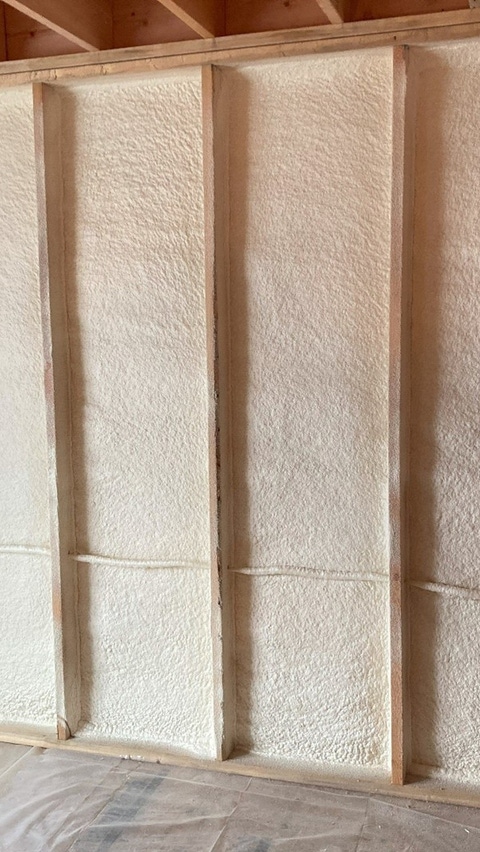

BASF Closed-cell Spray Polyurethane Foam installed into a wall
Spray Foam United States

WALLTITE®

WALLTITE® is a high-performance, closed-cell spray polyurethane foam (SPF) insulation that creates a seamless insulating air barrier to help improve the energy efficiency, comfort, and durability of homes and buildings. Spray-applied as a liquid, WALLTITE® expands and adheres to most substrates, flowing into cracks, joints, and hard-to-reach areas to form an airtight seal. Its closed-cell structure also adds rigidity and provides a vapor control layer to resist condensation, supporting long-term building performance. WALLTITE® easily seals corners and transitions, as well as areas around pipes, wiring, and other openings, helping to reduce air leakage and moisture intrusion.

Spray Foam United States
Products
WALLTITE Closed-cell

Spray Foam United States

WALLTITE Closed-cell

Product Features

WALLTITE® has superior, multi-attribute performance that outperforms any traditional or SPF insulation system.

  • Air Barrier Material and Assemblies Available
  • Moisture Vapor Retarder
  • Superior Insulation Performance
  • Water Resistive Barrier
  • Optimized Occupant Comfort with Air Leakage Control
  • Increases Structural Strength
Cross section diagram of a building wall inticating where our BASF Closed-cell Spray Polyurethane Foam is installed

Certifications and Credentials

Through extensive testing, WALLTITE®  meets and exceeds various standards and codes, and has earned numerous certifications.

  • GREENGUARD Gold Certified Low-VOC Material
  • Intertek Code Compliance Research Report CCRR-0374
  • ICC Evaluation Service Report ESR-2642
  • NFPA 285 Fire-Resistance Approved Assemblies
  • UL 263 Fire-Resistance Rated Wall and Ceiling/Floor Designs
  • Air and Water-Resistive Barrier Approvals Available
  • DRJ TER-1403 Structural Engineering Approvals for HP+ Wall Designs
  • ENERGY STAR Certified Insulation
  • A.I.R. Seal of Excellence Qualified SPF
  • Extensive Environmental Claims Validations (ECV) by UL Solutions
Close up of our WALLTITE BASF Closed-cell SPray Polyurethane Foam being sprayed into a commercial building wall with metal framing
WALLTITE® One

All-in-one performance in residential, commercial and industrial applications, with broad testing and high R-value per inch.  A complete air and weather resistant barrier for exterior cavities, foundations and more.
  1. Learn more about WALLTITE® One
BASF Closed-cell Spray Polyurethane Foam applied in cieling
WALLTITE® Max

A high-yield, lower density  formula that provides maximum coverage and cost efficiency with back to back installation, optimized for residential housing. Approved in HP+ Wall engineered assemblies.
  1. Learn more about WALLTITE® Max
WALLTITE BASF Closed-cell Spray Polyurethane Foam applied in wall cavity
WALLTITE® RSB

High recycled and renewable content makes this the ideal product for custom homes and green building projects.  Highest R-value per inch with extensive certifications, while providing a smooth surface and superior sprayability.
  1. Learn more about WALLTITE® RSB

WALLTITE® Performance Qualities

Property Value
R-Value (per inch) 7.0-7.6 per inch
Air Permeability Air leakage <0.001 L/s/m² @ 75 Pa at 1” thickness
Absorbs Water <4% v/v
Allows Moisture Vapor in No
Seamless Application Yes
Adds Structural Strength Yes - self-supporting, rigid, peak wind load resistance, fully adheres to wall system
Installation Fast - spray-applied, no fasteners, no gluing, no heat

WALLTITE® Air Barrier Systems brochures:
