HP+ Wall Assembly – X Series

The HP+^TM Wall System X Series is a structural assembly that complies with codes when built as an air barrier system (ABS). Nominal insulation R-values can range from R-25 up to R-32 using 2 x 4 wood framing. The X Series offers exceptional strength against high winds and seismic movement.

Key Benefits:

Build Stronger: Create a stronger wall assembly designed to endure challenging conditions.
Build Smarter: Construct a wall assembly that incorporates continuous insulation and an air/vapour barrier system without the need for a conventional vapour and weather resistive barrier.
Build Sustainable: Minimize energy loss with reduced air leakage and high R-values.

Systematic Success

The HP+^™ Wall System X Series is designed to deliver a smart new way to build affordable, high performance homes.

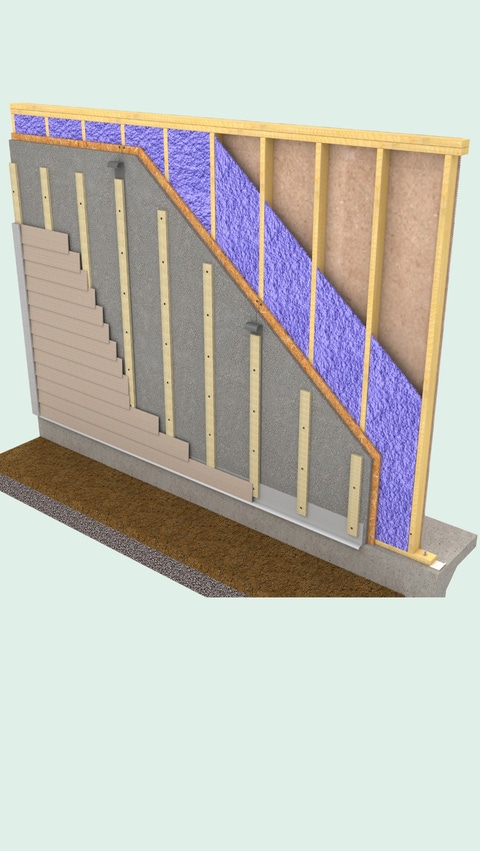

The wall assembly features the following:

2x4 wood framing at 16" or 24" on center construction
minimum 1/4" OSB
2" Neopor^® graphite-enhanced rigid thermal foam insulation. Also available in different thicknesses and R-values to fit your climate zone needs and code requirements
Polyurethane sealant
2 1/2" WALLTITE^® insulating air barrier material
Extra room to add more WALLTITE^® for an increased R-value

Strength in Numbers

By combining 2 x 4 framing with foam sheathing, OSB, and spray polyurethane foam in a composite design, the HP+ Wall System X Series can increase structural integrity. When properly designed and installed, the HP+ Wall System can offer one of the best values available for residential construction.
Benefits include:

Stronger walls with increased lateral load resistance as compared to a typical wall (studs and exterior sheathing)
Improved moisture management that can mitigate thermal and structural issues; reducing potential builder callbacks
Suitable alternative to the HP+ Wall System E Series in high seismic and wind zones

Build a Better Barrier - Thermal, Air, Water and Vapour Drive

With integrated thermal, air, water and vapour flow management in a single system, the HP+ Wall System X Series provides an effective building envelope against severe Canadian climates.

Provides higher thermal performance in 2x4 wood framing and interior square footage without increasing the building's footprint
Reduces thermal bridging with continuous insulation which can also perform as a weather resistive barrier
Creates a superior air and vapour barrier using WALLTITE^® and Polyurethane sealant
